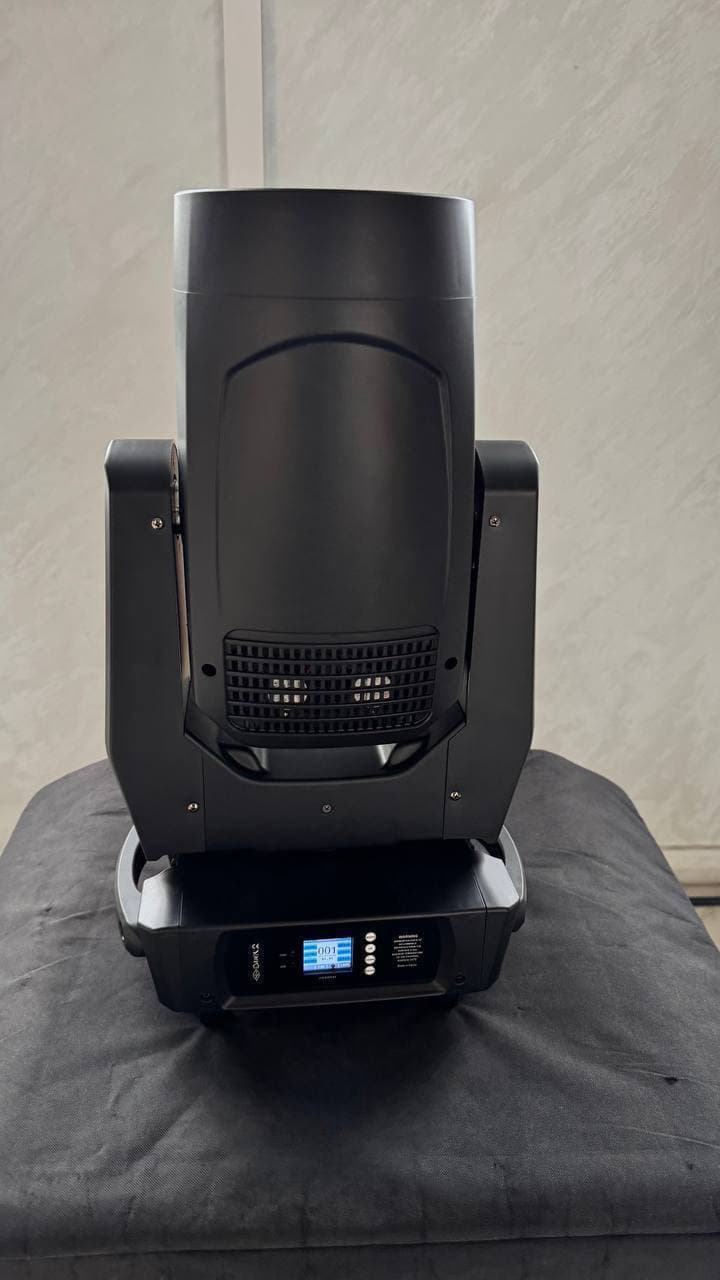

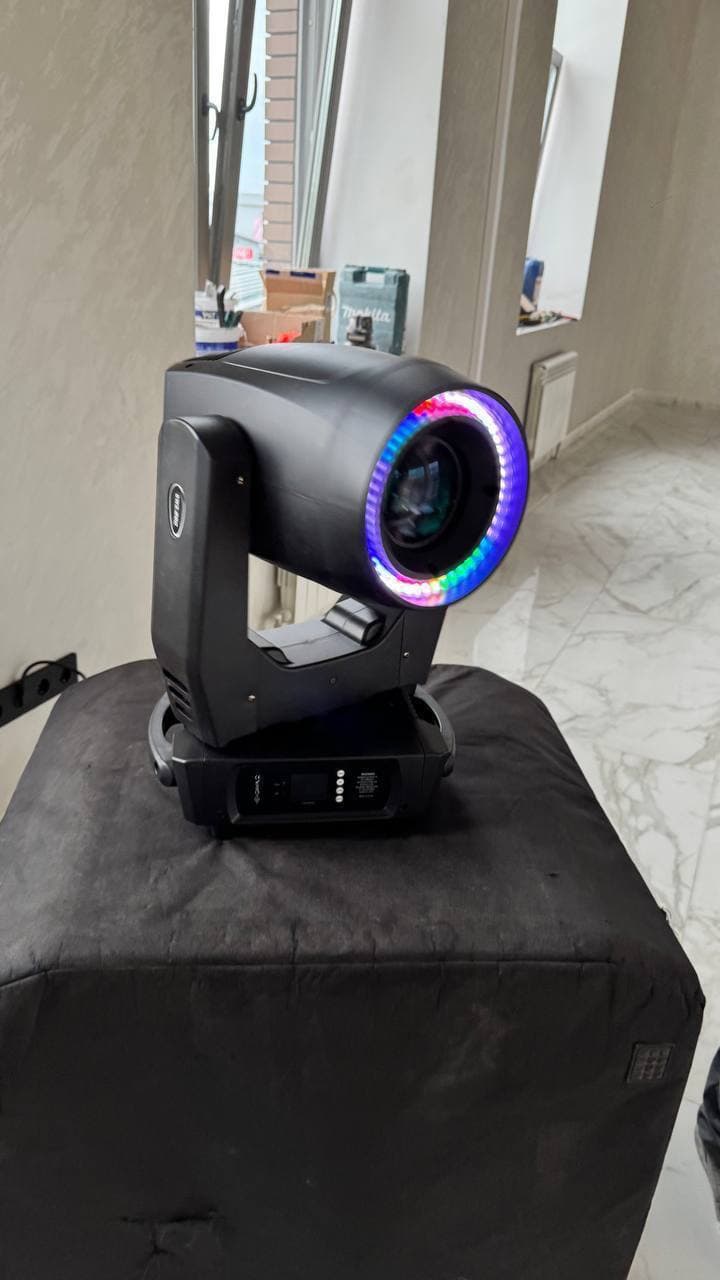

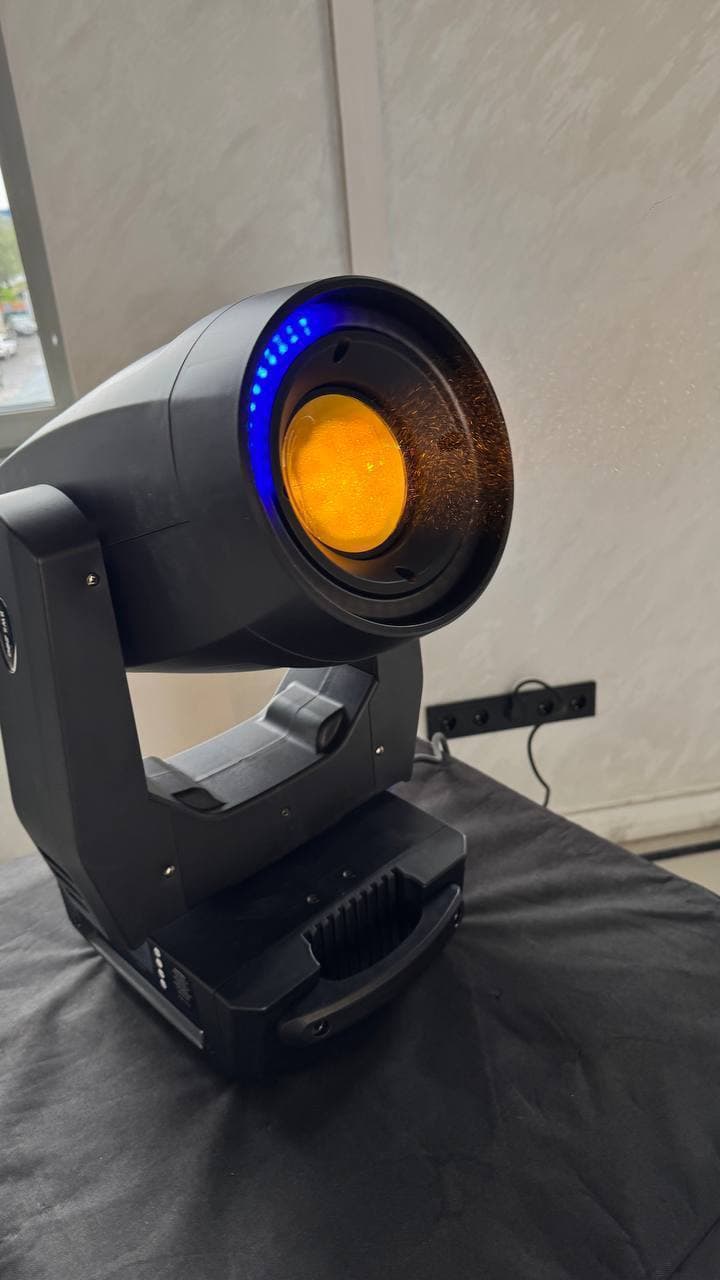

Bsw-280

DMX channels: 22/25 channels Color wheel: 9 colors + open Static gobo wheel: 8 gobos+ open Rotating gobo wheel: 7 gobos+ open Effect Wheel: one Rotation 3-facet prism, Beam Zoom angle: 8.5°-35° Focus: Electronic focus Frost lens Movement:Pan/Tilt X axis: 540°,Y axis 230° Control mode: DMX512 / Master-slave/ Auto run / Sound Display: LCD display IP rate: IP20 Package size:39 *28 *H68cm Dimension Lumen Chart 4 :MENU FUNCTION ADDR 001-512 Channel mode 22 CH 25 CH MODE DMX Ctrl Auto run Sound Ctrl Scene Mode Auto Scene 1- 10 M/S Choose Auto Slave Master DISP Language 中文 English Screen saver Mode 1 Mode 2 Mode 3 Mode 4 OFF Screen Rot Forward Reverse DMX indicate mode 1 mode 2 mode 3 Screen light 1-10 SCENE Scene select Scene 1- 10 Scene Time Control Mode OFF/ON 01.Strobe 000-255 02.Dimmer 000-255 03.Dimmer Spd 000-255 04.Pan 000-255 05.Pan Fine 000-255 06.Tilt 000-255 07.Tilt Fine 000-255 08.PT Spd 000-255 09.Colour 000-255 10.Colour F 000-255 11.Gobo 000-255 12.Rot Gobo 000-255 13.Gobo.Rot 000-255 14.Focus 000-255 15.Focus F 000-255 16.Zoom 000-255 17.Prism 1 000-255 18.Prism 1 .R 000-255 19.Frost 000-255 20.Pixel.Dim 000-255 21.Pixel.FUNC 1 000-255 22.Pixel.Spd 1 000-255 23.Pixel.FUNC 2 000-255 24.Pixel.Spd 2 000-255 25.Reset 000-255 ADUA Pan invert OFF ON Tilt invert OFF ON P/T Rectity OFF ON Pan offset Tilt offset Data hold OFF ON Scene time Reset Factory Setting STAT Stepper info Error Logging Fixture status Version light time Total time Serial Number 5: DMX CHANNELS 22/25 channels definition table LIST-1 LIST-2 NAME VALUE BRIEF 1 1 Strobe 0-3 Dark 4-127 Pulse strobe slow to fast 128-191 Fade strobe slow to fast 192-251 Rand strobe slow to fast 252-255 Open 2 2 Dimmer 0-5 Dark 6-255 0-100% dimmer 3 Dimmer Spd 0-255 3 4 Pan 0-255 0-540(degree) 4 5 Pan Fine 0-255 0-2(degree) 5 6 Tilt 0-255 0-270(degree) 6 7 Tilt Fine 0-255 0-1(degree) 7 8 PT Spd 0-255 Fast to slow 8 9 Colour 0-4 White 5-9 White+colour1 10-14 Colour1 15-19 Colour1+Colour2 20-24 Colour2 25-29 Colour2+Colour3 30-34 Colour3 35-39 Colour3+Colour4 40-44 Colour4 45-49 Colour4+Colour5 50-54 Colour5 55-59 Colour5+Colour6 60-64 Colour6 65-69 Colour6+Colour7 70-74 Colour7 75-79 Colour7+Colour8 80-84 Colour8 85-89 Colour8+Colour9 90-94 Colour9 95-99 Colour9+Colour10 100-180 Rotate forward (fast to slow) 181-185 Stop 186-255 Rotate reverse (slow to fast) 10 Colour F 0-255 9 11 Gobo 0-9 White 10-19 Gobo1 20-29 Gobo2 30-39 Gobo3 40-49 Gobo4 50-59 Gobo5 60-69 Gobo6 70-79 Gobo7 80-99 Gobo8 100-109 Shake slow to fast white 110-119 Shake slow to fast Gobo1 120-129 Shake slow to fast Gobo2 130-139 Shake slow to fast Gobo3 140-149 Shake slow to fast Gobo4 150-159 Shake slow to fast Gobo5 160-169 Shake slow to fast Gobo6 170-179 Shake slow to fast Gobo7 180-189 Shake slow to fast Gobo8 190-223 Rotate reverse (fast to slow) 224-255 Rotate forward (slow to fast) 10 12 Rot Gobo 0-9 White 10-19 Gobo1 20-29 Gobo2 30-39 Gobo3 40-49 Gobo4 50-59 Gobo5 60-69 Gobo6 70-79 Gobo7 80-89 Shake slow to fast Gobo1 90-99 Shake slow to fast Gobo2 100-109 Shake slow to fast Gobo3 110-119 Shake slow to fast Gobo4 120-129 Shake slow to fast Gobo5 130-139 Shake slow to fast Gobo6 140-149 Shake slow to fast Gobo7 150-200 Rotate forward (fast to slow) 201-255 Rotate reverse (slow to fast) 11 13 Gobo.Rot 0-127 0-360(degree) 128-190 Rotate reverse (fast to slow) 191-192 Stop 193-255 Rotate forward (slow to fast) 12 14 Focus 0-255 Far to near 15 Focus F 0-255 13 16 Zoom 0-255 Large to small 14 17 Prism1 0-127 None 128-255 Inert prism1 15 18 Prism1.R 0-127 0-360(degree) 128-187 Rotate forward (fast to slow) 188-195 Stop 196-255 Rotate reverse (slow to fast) 16 19 Frost 0-127 None 128-255 Insert frost 17 20 Pixel.Dim 0-3 Dark 4-255 0-100% dimmer 18 21 Pixel.FUNC1 0-255 19 22 Pixel.Spd1 0-255 20 23 Pixel.FUNC2 0-255 21 24 Pixel.Spd2 0-255 22 25 Reset 0-209 None 210-215 Reset XY motor over 3 second 216-219 None 220-235 Reset Effect motor over 3 second 236-239 None 240-255 Reset fixture over 3 second
